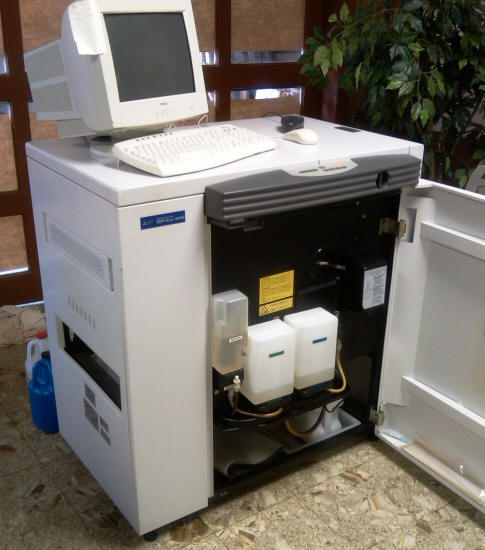

Mitsubishi Silver DigiPlater SDP-Echo 1630

Sold


  • Recording Capstan
  • RIP Mitsubishi SDP-RIP
  • Light Source Red Laser Diode (635 nm)
  • Resolution 1200, 1500, 1800, 2400 dpi
  • Recording Speed 81 plates/h at 1200 dpi, 69 plates/h at 1500 dpi
  • 53 plates/h at 1800 dpi, 29 plates/h at 2400 dpi
  • Output Media Silver Digiplate Material SDP-FRS175 (61m),
  • SDP-FR100 (61 m), SDP-RR175 (75m)
  • Plate Width max. 414 mm, 454 mm (optional) (16.3”)
  • Maximum Recording Width 404 mm (15.9”)
  • Plate Length 220 to 580 mm (8.7” to 22.8”)
  • Developing System Coating Type Development, „Eco“ Processor

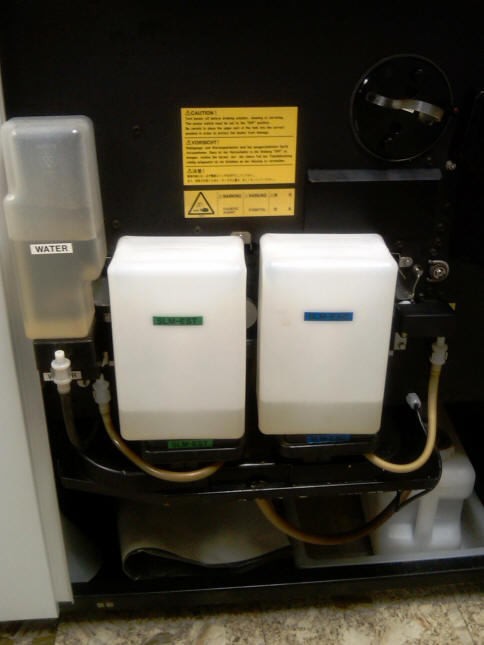

  • Chemicals SLM-EAC (Activator), SLM-EST (Stabilizer)
  • Tank Capacity SLM-EAC: 0,55l, SLM-EST: 0,6l, Wash-off Water: 0,26l
  • Power Requirements 50/60 Hz, 230 V, 1.2 kW
  • Dimensions 1000 (W) x 795 (D) x 1070 (H) mm, 207 kg
  • Environment 23°C ± 5°C, 50-70% relative humidity
