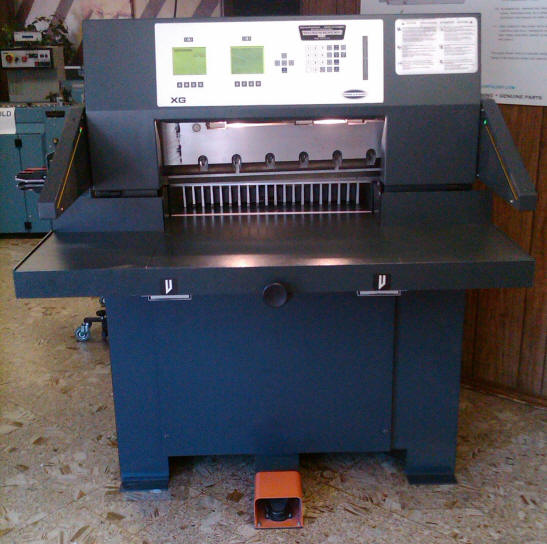

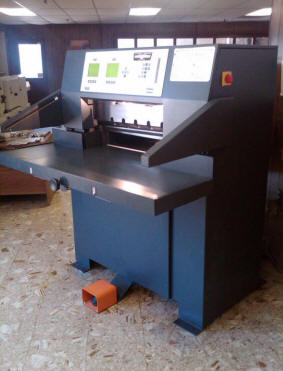

26.5" Challenge 265 XG

Sold

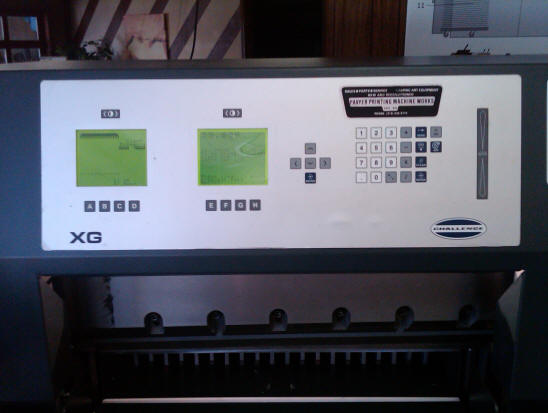

The XG console offers menu - driven prompts, programmable clamp pressure and gives operator a graphical depiction of the job.


  • Hydraulic Clamping and Cut Motion
  • Maximum Cutting Width: 26.5"
  • Minimum Cutting Depth: 5/8" with out False Clamp Plate, 1 7/8" with False Clamp Plate
  • Maximum Cutting Depth 28"
  • Maximum Clamp Opening 4"
  • 99 Channel, 9801 Total Cut Memory
  • Memory Lockout
  • An Industry Exclusive — Light Touch Variable- Speed Pinpoint Backgauge Control
  • Push-Out Function
  • Computer Diagnostics
  • Adjustable Clamp Pressure
  • Light Beams
  • Mechanical Knife Latch Safety Latch
  • Two Handed, Monitored Cut Buttons
  • Enclosed Rear Table
  • Manual Clamp with Foot Pedal
  • Up to 26 cuts per minute
  • Virtually maintenance-free design
  • Solid 1-inch thick tool grade aluminum table offers the strong work surface required in production environments
  • Trim business cards with the false clamp plate installed – reducing unwanted waste
  • 208/230 Volts 60 Hz 3 Phase
  • Made in the USA
