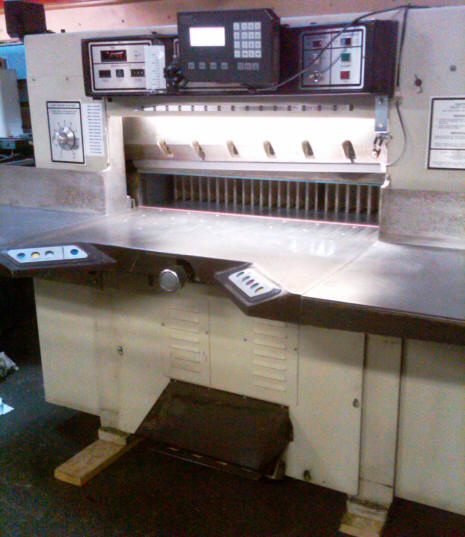

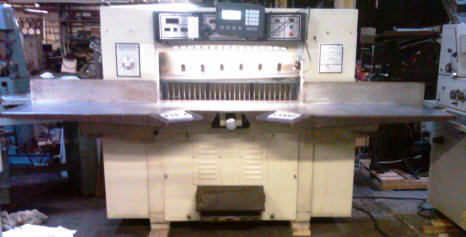

42" Challenge 420 TCM with
Microcut
| |
- Maximum Cutting Width
42" (107 cm)
- Minimum Cutting Length
with False Clamp Plate .75" (1.9 cm)
- Minimum Cutting Length
without False Clamp Plate 3" (7.6 cm)
- Maximum Cutting Length
42.25" (107 cm)
- Clamp Opening 6"

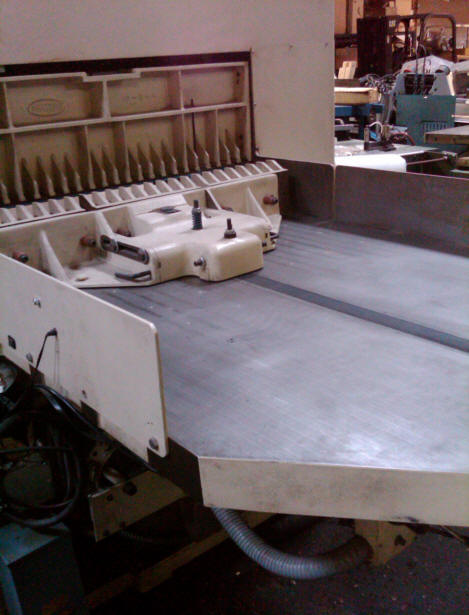

- Air Table

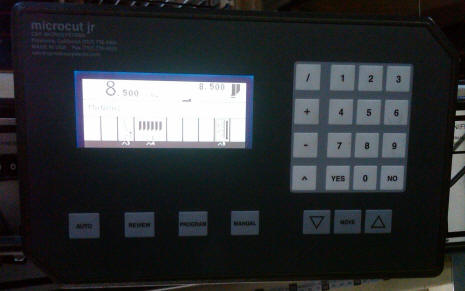

- Micro Cut Jr. Backgauge

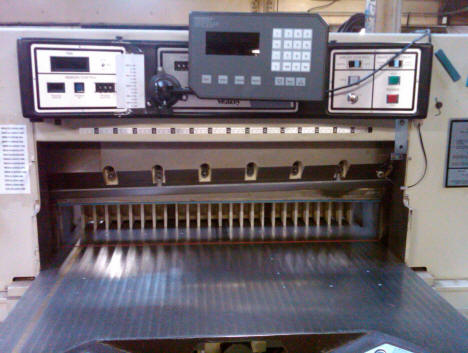

Controls Standard Features:
-
2000 Cut
Locations
-
Modular, solid
state circuitry
- Patented independent DC motor
drive
- Microprocessor-controlled,
infinitely variable backgauge drive
- Repeatability of backgauge
position to +/-.002 inches (.05 mm)
- Automatic backgauge return
- Operator-defined inch or metric
display
- Program entry or correction,
through the keyboard with the backgauge stationary or while
cutting the lift
- Automatic computation and entry
of fractions
- Insertion or deletion of
commands from existing programs
- Stock eject, turnaround,
loading points and job information
- Infinite lay compensate mode
for as many sides as requested
- Non-volatile memory�no
batteries required for memory support
- Optional auxiliary controls for
air and/or brake
- Minimum trim cut: .002 inch
(.05 mm)
- Speed range: 24 - 960 inches
per minute, both forward and reverse, depending on size and
condition of cutter
- Self-diagnostic electronics
- Electrical: 85 - 265 VAC, 50/60
Hz @ 1 KVA
- 40 Strokes Per Minute
Knife Speed
- Solid Steel
Construction
- Adjustable Clamp
Pressure
- Soft Clamping Foot
Pedal
- Hydraulic Clamping and
Knife Motion
- Knife Change Tools
- 2 Knives
- 3 Phase, 60Hz.
|
|
