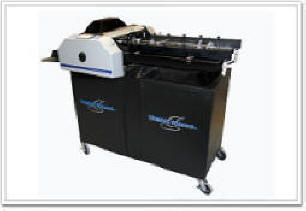

CreaseMaster PLUS

Crease and fold with superior quality and flexibility. The best creasing device in the marketplace teamed up with the leading folder in the marketplace creates the most flexible combined creasing and folding solution.

Click Here to View Video of Creasemaster in line with Baum Folder

The CreaseMaster Plus is ideal for the mid to high volume users ensuring a professional finish for every job. This pneumatic model is available in two production speeds; 3600 sph or 4600 sph and both offer multiple creases per sheet, job memory as well as options such as Strike perf and Impact perf . The system incorporates a user-friendly touch screen allowing for easy.... .

Electrical: 120V/230V, 60/50Hz, 5.0 Amp

Maximum Speed
(impact creasing): 3600 8.5 x 11" sheets per hour

Maximum Speed
(rotary perf/score): 4900 8.5 x 11" sheets per hour

Maximum stock size: 18"W x 25.5"L (45.7cm x 57cm)

Minimum stock size: 3.5"W x 5"L (8.9 cm x 12.7 cm)

Stock weight: 12lb. - 18 point (45- 385 gsm)

Perforation options: 2,4,6,8,12 teeth per inch (TPI);
42 or 72 TPI MICROPERF

Rotary score options: wide (standard) or narrow

Strike Perf attachment: Optional

 Impact Perf: Optional

 Creasing Die: Wide (standard) or narrow

Slitting Blade: Optional

• Impact creasing significantly reduces cracking of digitally-printed substrates during the finishing process.
• Inverted AND regular impact creasing in the same pass!
• Up to 10 impact creases per sheet.
• Up to 20 jobs can be stored into memory.
• Easy-to-use programming. Set up in minutes!
• Rotary perforations (at the entrance of the machine for accuracy; no tail whip) are anvil style and produce a "burr-free" finish. Microperfs are also available.
• Optional strike perf attachment and Impact Perf available for "box" or "T" perfs.
• Optional strike perf attachment available for "box" or "T" perfs.
• NOTE: machines are pneumatic and require compressed air (compressor; not supplied) to operate.

For More Information Call Brad @ 314-535-0774
