Roll Laminators One of the
Worlds's Highest Quality Manufactures of Roller Laminators and Laminating Film

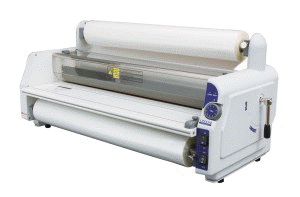

25" Roller Laminator / 13" Roller Laminator Model Numbers: LPE6510 /LPE3510 Easy to Operate Fast Warm-up Time Special Separation Lever Fujipla laminators have been specifically designed to eliminate the problems and confusion of operation. Parting of the pressure rollers enables the operator to easily thread the laminator, avoid flat spots during extended down time and free the film from the rollers in the event of a wrap-around. Fast warm-up time about 5 to 10 minutes ensures less waiting time.

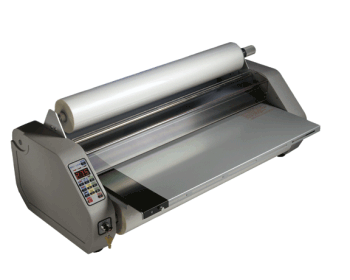

DRY-LAM 27STA Digital Roller Laminator The Professional Series STA Roll Laminator is one of the most popular laminators ever produced.This dependable workhorse has been delivering outstanding results for years. The new digital control panel features a large, easy to use display. Adjustable speed, heat and tension controls give the user the flexibility to handle many types of projects. The 1" core machine uses 1.5 or 3 mil roll film up to 27" wide. Made in USA
Model Number: 27STA Digital Controls with User Preset and Usage counter Key switch prevents unauthorized use of laminator Adjustable temperature and speed controls Laminates up to 3mil film One Year Parts and Labor Warranty
DRY-LAM School-Lam 27" Roller Laminator Put the fun back into laminating with the School-Lam SL27 laminator. Easy-to-use controls give the user the flexibility to handle many types of laminating projects without complicated displays and multiple buttons.Laminating is the proven way to enhance images, sharpen colors, and protect documents from water, dirt, handling, wrinkling, and tearing.
Model
Number: SL27 Easy-to-use
Only two switches to operate
Key switch prevents Adjustable temperature and fixed speed Laminates up to 3mil film One Year Parts and Labor Warranty

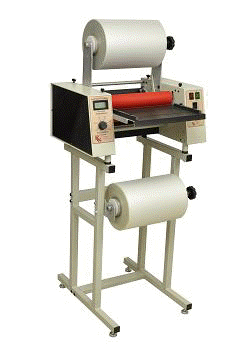

12" High Performance POCKET ROCKET PL-1200HP The 12" wide PL-1200HP is possibly the fastest 110v 12” laminator in existence. While producing a superb finish and edge seal it is capable of speeds up to 17 fpm and can laminate 3 mil. material in excess of 10 fpm. It will accept films from 1 to 15 mils thick and will laminate materials, such as foam board up to 1/4” thick. Sets up in minutes, and has a thru-put capability in excess of 1000 fph. The PL-1200HP is a cost efficient, high performance laminating machine. This is truly a professional machine in every aspect and features a patented heated roller design. Save energy by turning it on when you need it, warm up time is only four minutes. This laminator will handle the vast majority of all laminating since printing, copying, and duplicating machinery does not process output that exceeds 12” in one dimension.

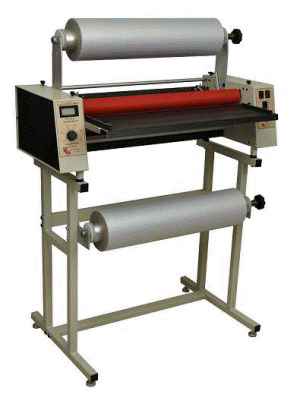

27" High Performance PL-227HP At last, a superb quality US made laminator to bridge the gap between school and expensive entry level commercial machines. It is capable of running all thermal laminating films up to 10 mil at speeds up to 16 FPM and can laminate a wide variety of substrates to 1/4" thick. Save energy by turning it on when you need it, warm up time is only five minutes. The options on this machine, include 3" supply mandrels, welded steel stand, additional slitters and additional feed guides. With the optional liner take up assembly, it is capable of applying, hot (thermal) laminates or cold (pressure sensitive laminates) as well. Due to the superior heat replacement characteristics of our exclusive patented heated roll system, the PL-227HP is particularly suited to simultaneous mounting and laminating on heat activated adhesive foam board. It produces a superior scratch and stretch free finish and a bond so aggressive that any attempt to peel off the laminated material will result in total destruction of the foam board. This laminator is also available in a table top model with 1" core mandrels
38" Wide Format PL-238WF The PL-238WF is a high quality wide format 38" laminator capable of running all thermal laminating films thru 10 mil. at speeds up to 7 fpm. It can also mount a wide variety of substrates as thick as 1/4". With a warm up of about 6 minutes, the machine may be turned on when you need it, which translates into significant energy savings. Accessories include 3" supply mandrels, and welded steel stand. Our exclusive micro-adjustable slitters are available as an option for larger jobs. The PL-238WF laminator is perfectly suited for applying, hot (thermal) laminates or cold (pressure sensitive laminates) with the optional liner take up assembly. Due to the superior heat replacement characteristics of our exclusive patented heated roll system, the PL 238WF is particularly suited to simultaneous mounting and laminating on heat activated adhesive foam board. It produces a superior scratch and stretch free finish and a bond so aggressive that any attempt to peel off the laminated material will result in total destruction of the foam board. The standard PL-238WF package includes a stand and 3" mandrels. There are several options available which include additional mandrels 1" or 3", wheels for the stand, core stops for rapid film changing, slitters, release liner winder and additional feed guides. 44" Wide Format

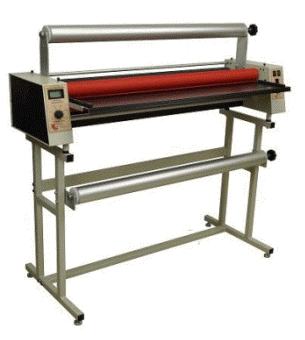

Heated Roll Laminator -NEW! PL-244WF The PL-244WF is a high quality wide format 44" laminator capable of running all thermal laminating films thru 10 mil. at speeds up to 7 fpm. It can also mount a wide variety of substrates as thick as 1/4". With a warm up of about 6 minutes, the machine may be turned on when you need it, which translates into significant energy savings. Accessories include 3" supply mandrels, and welded steel stand. Our exclusive micro-adjustable slitters are available as an option for larger jobs. The PL-244WF laminator is perfectly suited for applying, hot (thermal) laminates or cold (pressure sensitive laminates) with the optional liner take up assembly. Due to the superior heat replacement characteristics of our exclusive patented heated roll system, the PL 244WF is particularly suited to simultaneous mounting and laminating on heat activated adhesive foam board. It produces a superior scratch and stretch free finish and a bond so aggressive that any attempt to peel off the laminated material will result in total destruction of the foam board. The standard PL-244WF package includes a stand and 3" mandrels. There are several options available which include additional mandrels 1" or 3", wheels for the stand, core stops for rapid film changing, slitters, release liner winder and additional feed guides.
13" Automatic Trimmer The TR-1200 Autocutter is the perfect companion to the PL-1200HP Laminator. Utilizing the side slitters on board your laminator, the TR-1200 Autocutter trims the leading and trailing edges of the sheet giving you a completely finished product. Of course if you already have a laminator, the TR-1200 can run behind any lamination system to automatically and uniformly cut the leading and trailing edges of the sheets.Don’t be fooled by its small size, this system is loaded with features. The cutting margin can be adjusted to cut completely flush, leave a uniform border of film, oreven negative cut into the laminated sheet. The leading and trailing edge cuts are independently controllable meaning you can flush cut the leading edge if desired while leaving a larger trailing edge margin. Larger margins are perfect for creating a tough laminated binding edge. Or flush trim for precision accuracy. Throughput Speeds in excess of 30ppm on 11 x 17 sheet Cuts1.2 mil to 10 mil Laminate Digital Microprocessor Controlled Large LCD Touch Screen Display Intuitive User Adjustable Settings Precise Settings to .005 Rotary Self-Sharpening Blade Magnetic Outfeed Guides For More Information Call 314-535-0774 |
|
