The Graphic Whizard VividCoater

Click Here to receive more information about any of our products.

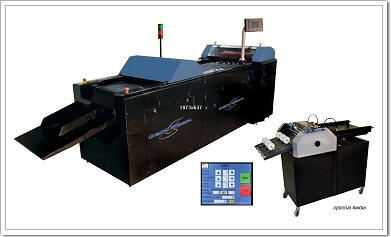

UV Coater in line with Digital Creaser

Click Here to see Video of Inline Creaser and Coater

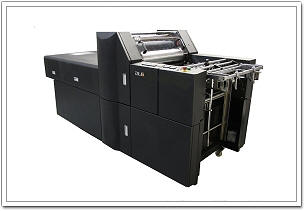

VividCoater DLG

Available as Flood and Spot Coater

Features:

Electrical:	220-240V 3phase/60Hz/80A
Speed:	up to 5500 sph
Max Stock Size:	24.25”W(62cm) * 17.7”(45cm)
Stock Weight:	80-350 gsm
Dimensions:	Length: 118” (300 cm) Width: 44” (110 cm) Height: 55.25” (140 cm) Weight: 2975 lbs (1350 kg)

Standard with touch screen controls for easier use
UV lamp (one standard, second optional)(Spot Coater comes with 2 standard)
IR lamp as standard
3 rollers with reverse and variable roller speed ratio control provides best coating results
Pneumatic automatic receding stacker on AS models and Spot Coater
Air knife optional for assistance with thin stocks (above 80 gsm)

Note:

All models require compressed air
External ventilation or air purification highly recommended

Click Here to receive more information about any of our products.

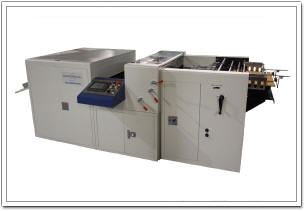

VividCoater XDC

See Video at http://www.youtube.com/user/chrisgwhiiz#p/u/0/2kDQlIeAeX0

Available in 18", 26" and 29" with optional air feeder.

Features:

Electrical:	208/220-240V 1phase / 60Hz / 40A
Speed:	5900’/hour (1800m/hour)
Max Stock Size:	18.80”W (48cm) x 20”L (50.75cm)
Stock Weight:	157-450 gsm * changes according to paper quality
XDC480A Dimensions:	Length: 119” (302 cm) Width: 48” (122 cm) Height: 36” (91.5 cm) Weight: 1190 lbs (540 kg)

XDC660A Dimensions:

Length: 125” (318 cm)
Width: 55” (140 cm)
Height: 36” (91.5 cm)
Weight: 1300 lbs (590 kg)

XDC750A Dimensions:

Length: 130” (330 cm)
Width: 59” (150 cm)
Height: 36” (91.5 cm)
Weight: 1475 lbs (670 kg)

Standard with touch screen controls for easier use
UV and IR (3 bulbs)
Deep pile feeder - 18” capacity
Double sheet detector
Stainless steel doctor blade (on/off lever)
3 roller coating application system
Easy set lever for adjusting roller pressure settings and doctor blade

Note:

External ventilation or air purification highly recommended

Click Here to receive more information about any of our products.

ViVidCoater

Features:

Electrical:	220V, 60A, 3 Phase
Weight:	1600 lbs/725 kg
Operating speed:	variable up to 140ft per minute/42m per minute
Dimensions:	Length: 156”/3.9m Width: 45”/1.14m Height: 56”/1.4m
Minimum Sheet Size:	5.5”x8.5” / 14cmx21.5cm
Maximum sheet size:	21.5”x26” / 54.6cmx66cm

Coats 80# cover stock up to 1/4” Rigid Stock
Automatic: speeds up to 5,000 sph
Hand fed: speeds up to 3,500 sph
Vacuum hold down throughout
Fire detection sensor, safety guards and emergency stops
Transparent guard enclosure for operator safety and dust free environment
5 gallon (20.1 litre) closed loop recirculating UV dispensing system
Precision coating metering adjustments
A/C inverter chain drive system with electronic overload
Polished chrome metering and bottom rollers
Digital variable speed control
Special high density UV resistant applicator roller
Single air cooled, adjustable 200/300 wpi, direct focused UV lamp
Built in heavy duty vacuum exhaust system
Compatible with all major digital and offset print engines
Switches between various coatings in minutes with no waste
In-line integration of optional feeder/stackers
Digitally set speed controls
Ascending, descending and batch counting
Digital touch screen with full system diagnostics
Automatic lamp power output adjustment with user override
Sound and signal operational indicator status
Electronic lamp ballast maintains constant UV output
Lowered system amperage to less than 30 amps.

Click Here to receive more information about any of our products.

Click Here to view video page of Graphic Whizard Coaters

The VividCoater is a low maintenance ultra violet cured coating system that produces a high quality finish to the printed sheet. With a wide range of finishing options, including matte to high gloss, UV coating not only makes printed products lively and brilliant, but also offers powerful protection against friction and fading.

Compared to conventional solvent based coating the VividCoater produces virtually no Volatile Organic Compounds (VOC's) and is considered to be environmentally friendly.

Click Here to Contact us for more information about the VividCoater

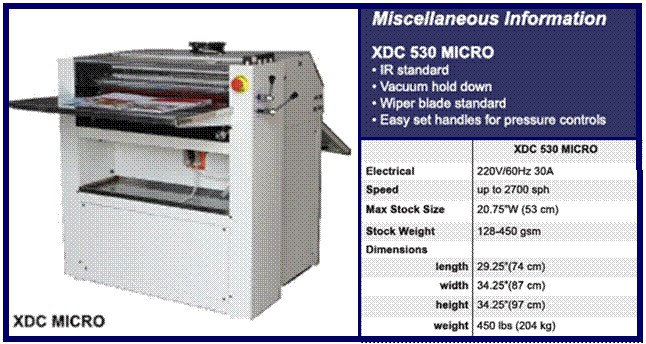

XDC Micro

Vivid Coater Micro

Click Here to receive more information about any of our products.

Click Here to see a video of VividCoater

Click Here to see a video of the XDC Micro Coater

Standard Specifications:

• Coats stocks from 157 gsm (60# cover/7.4 pt)

to 385 gsm (146 # cover/18 pt)

• Variable speed control (900-1350 sheets

per hour)

• Two separate UV pumping stations allow two

different 9 lb. (4.1 kilo) buckets of solution to

be available at all times

• Maximum coating width 20.75” (530 mm)

• Polished chrome metering and bottom rollers

• Air cooled direct focused UV lamp

• Forward/reverse controls for easy clean up

• Vacuum hold down/E stop

Specifications

• Maximum coating width: 20.75” (530mm)

• Maximum coating length: unlimited (standard tray

holds up to 18” (457 mm) but can be extended to

hold up to 36” (914 mm)

• Coating Capacity: 2 * 9lb (4.1 kilo) buckets

(10,000 + sheets)

• Coating Thickness: 5 to 25.4 microns

• Coating Technology: 100% UV curable/reverse

roll/flood

• Coating Roller: Proprietary EDPM

• Coating Finish: smooth

Dimensions:

• Coater Size (LxWxH): 31.75x33x43.75”

(806x838x1110mm)

• Crated Size (LxWxH): 33x35x47”

(838x889x1195mm)

• Coater Weight: 221 lbs. (100kg)

• Crated Weight: 265 lbs. (120kg)

Electrical:

• Amperage: 30 A breaker required

• Voltage: 110V/50 hz.

Warranty:

• 1 Year parts

Other:

• External ventilation or air purification highly

recommended
